Alignment of alloys | Designation | Description |
1XXX series | Al 99,5-99,7 electrical wire | Shining bright wires what are new, or came from cable-skinning , granule or power bus bar |
Al 99,5-99,7 old (oxidized) wire | unalloyed air-cable, wire , granule |
Al99,5 thick sheets | sheets with min. thickness of 5mm (tank, or hopper sheets) |
Al 99,5 unalloyed scrap | Unalloyed sheets, profiles (wall thickness min. 0,5 mm). |
Al 99,5 unalloyed with foil | Unalloyed sheets coated with preventive plastic foil (weight ratio of foil max. 3%, wall thickness min. 0,5 mm) |
Al99,5 unalloyed painted | thin painted or lacqued (cover-material ratio max. 5 % of the mass wieght, wall thickness min. 0,5 mm) |
Al99,5-99,7 tubes briquetted | blank or painted tube-waste from processing, plastic free |
Al 99,3 Offset | typographic offset sheets (used, min. thickness 0,2 mm) |

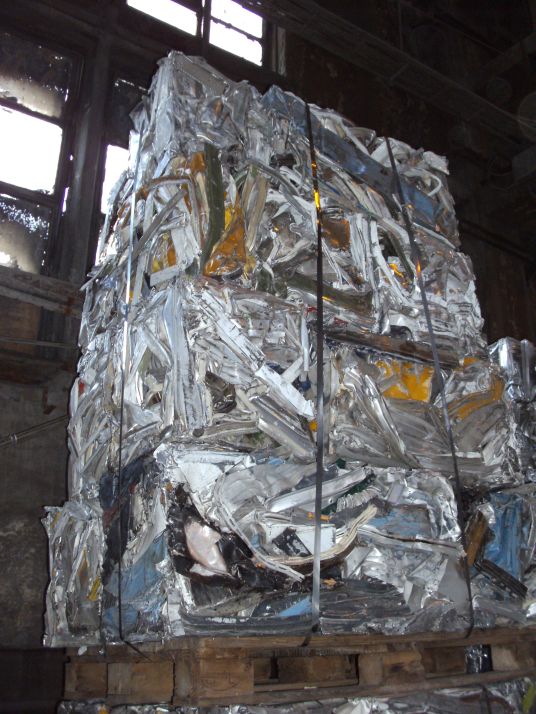

6XXX series | AlMgSi0,5 profile | wall thickness max. 3 mm. With allowed content of max. 10% eloxed profile. |
AlMgSi0,5 profile painted | thin paint or lacquer coating, max. 5 % of mass weigth |

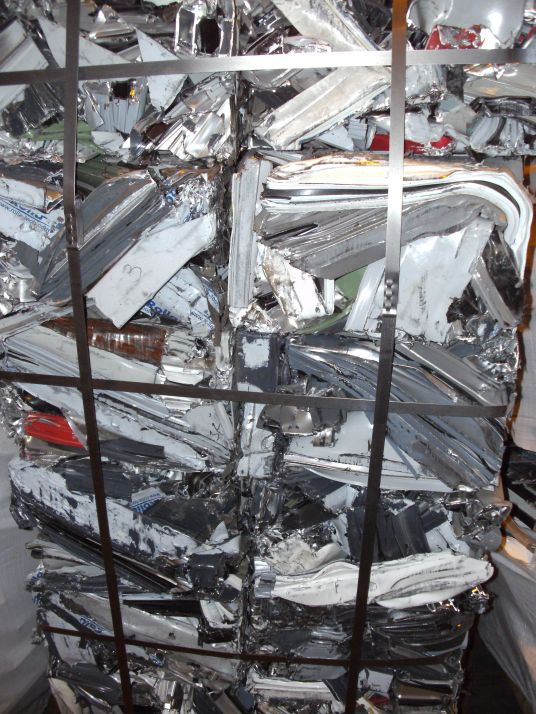

AlMgSi0,5 isoprofile (with plastic) | isulating plastic and the paint coating shall be max. 15 % of mass weigth |
AlMgSi0,8 wire | Air-cable |
AlMgSi0,5-1 tubes & profiles | max. 10% eloxed profile per pallets allowed |
5XXX series | AlMg1-5 sheet, tube, profile | thickness of sheets min. 0,5 mm without of ferrous or nonferrous dross |
AlMg1-5 sheet, tube, profile painted | thickness of sheets min. 0,5 mm |
AlMg1-5 sheets with foil | sheets coated with preventive plastic foil, weight ratio of foil max. 3%. Thickness of sheets min. 0,5 mm |
2XXX series | AlCuMg (dural) scrap | wall thickness min. 0,5 mm |
3XXX series | AlMn, AlMnMg sheets | wall thickness min. 0,5 mm |

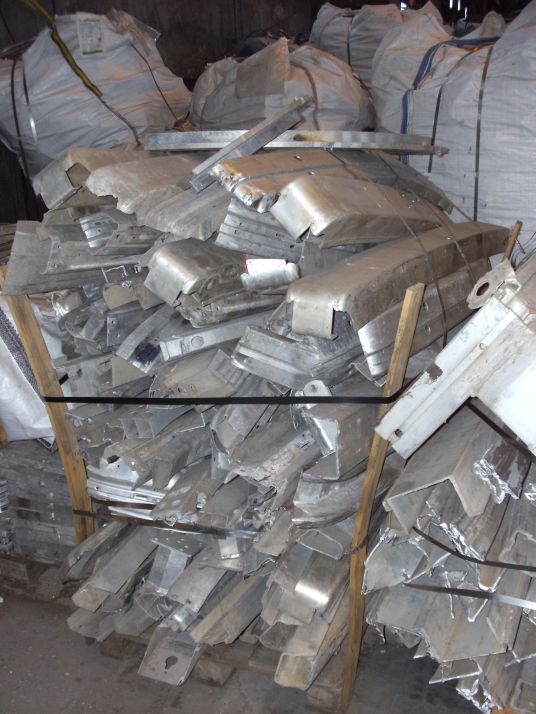

7XXX series | AlZnMg type scrap | wall thickness min. 0,5 mm |
8XXX series | AlFe, AlFeSi scrap | sheets, industrial foil (Al cooler flakes) |
